Quick Answer

There is no universal nickel chrome plating thickness that is correct for every OEM part. Required thickness depends on the substrate, service environment, corrosion target, appearance requirement, part geometry, plating specification, and the individual layers in the coating system. The correct value should come from the controlled drawing or specification and then be verified with an appropriate measurement method.

Why Does Plating Thickness Matter?

Coating thickness affects both performance and appearance. Nickel provides much of the leveling, luster, and corrosion protection in a decorative nickel chrome system, while the chrome topcoat is comparatively thin and protects the nickel while establishing the final surface color and character.

If the nickel is too thin for the intended environment, corrosion can reach the substrate sooner. If a deposit is unnecessarily heavy, the process may add cost, time, dimensional change, and stress without improving the part in a meaningful way.

For that reason, thickness should be treated as an engineering requirement rather than a rule of thumb.

What Determines the Required Nickel Thickness?

The first factor is the end-use environment. An interior decorative component that rarely sees moisture may need a different system from an exterior automotive part exposed to rain, deicing salts, temperature cycling, and road contamination.

The second factor is the coating architecture. A demanding exterior system may use semi-bright nickel followed by bright nickel and additional engineered nickel layers. In that case, both total nickel thickness and the thickness relationship between individual layers can matter.

The third factor is the substrate. Steel, brass, zinc die-cast, and stainless steel each require different preparation and may use different undercoats or activation steps. A zinc die-cast component receiving decorative copper, nickel, and chrome is not the same process as zinc plating.

Does Part Geometry Change the Thickness You Measure?

Yes. Electroplating thickness is rarely perfectly uniform over a complex part. Current density tends to be higher on exposed edges and projections, while deep recesses, shielded surfaces, and low-current-density areas may receive less deposit.

That means engineers should define where thickness is to be measured. A reading taken on an easy-to-plate outer edge may not represent a recessed functional or cosmetic area. For high-volume production, measurement locations should be agreed upon during launch so the supplier and customer evaluate the same areas.

Rack design, part orientation, anode placement, shielding, auxiliary anodes, and process settings can all be used to improve thickness distribution when geometry is challenging.

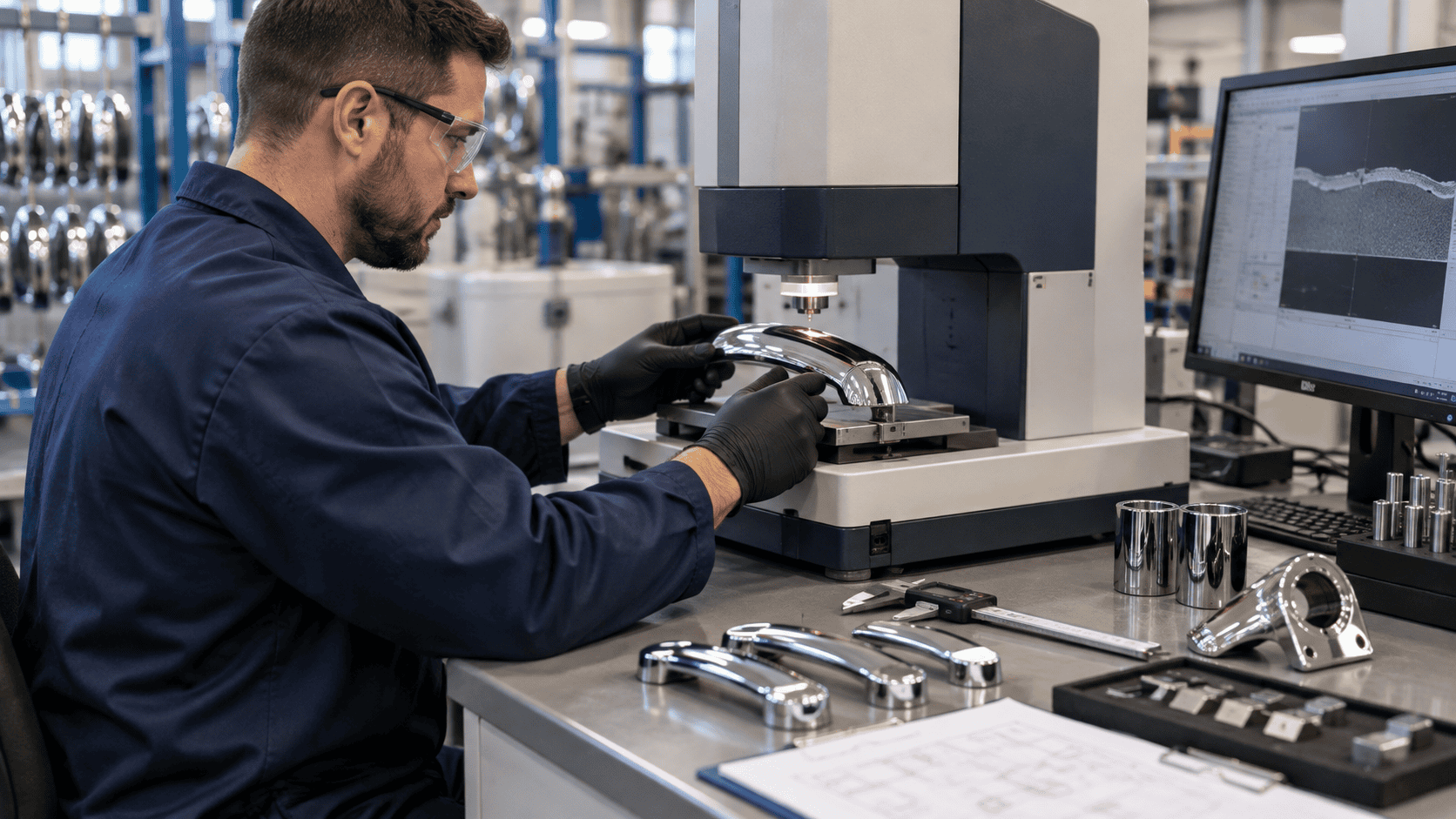

How Is Nickel Chrome Plating Thickness Measured?

Several methods can be used depending on the coating system and the information required. X-ray fluorescence, commonly called XRF, is especially useful because it can measure metallic coating thickness nondestructively. ASTM B568 describes the use of X-ray spectrometry for coating-thickness measurement and notes that coating thickness is an important factor in service performance.

Cross-section metallography can provide a direct visual measurement of individual layers at a cut section. Step testing and coulometric methods can also be useful for separating and evaluating layers in a multilayer coating system.

Master Finish lists Fischer X-ray fluorescence measurement, microscopic metallographic examination, Kocour plating-thickness analysis, and step testing among its in-house quality controls.

Is Total Nickel Thickness Enough to Define a Good Coating?

Not always. Two parts can have the same total nickel thickness and still perform differently if the layer structure is different. A multilayer system can be engineered so semi-bright and bright nickel deposits have different electrochemical characteristics that slow corrosion progression.

The chrome topcoat also matters, as do substrate preparation, porosity, adhesion, bath chemistry, process control, and corrosion-test requirements. Thickness is important, but it is one part of a larger coating system.

Should Manufacturers Specify a Minimum or a Range?

The drawing or specification should define acceptance in a way that matches the product requirement. Depending on the standard, that may involve a minimum thickness, a nominal target with tolerances, layer-specific requirements, or measurements at defined locations.

Avoid creating an arbitrary thickness requirement simply because a larger number sounds safer. Overplating can change fit, interfere with threads or mating surfaces, and increase cost. The controlled specification should be the authority.

Avoid unnecessarily complicated specifications or drawing requirements. They can increase finishing costs or limit the pool of qualified coating suppliers. Keep all necessary performance and acceptance criteria explicit, without adding constraints that the application does not need.

How Does Thickness Affect Cost?

More deposited metal generally means more plating time, chemistry, electrical energy, and line capacity. A thicker system may also require additional process steps or tighter measurement controls.

However, the cheapest thin coating is not economical if it fails the required corrosion test or field environment. For OEM sourcing, the goal should be the lowest total program cost for a coating that reliably meets the specification, not simply the lowest thickness or lowest piece price.

Frequently Asked Questions About Nickel Chrome Thickness

How thick is decorative chrome itself?

Decorative chromium is typically much thinner than the nickel underneath it. The exact requirement should come from the applicable specification rather than a universal value. The range for decorative chrome deposit is typically in the 0.05 micron to 0.5 micron range. Nickels can range from 5 microns to 30 microns in most applications

Can XRF measure nickel chrome plating thickness?

XRF is widely used for nondestructive coating-thickness measurement when the coating and substrate combination is suitable. Layer structure and instrument setup determine what can be measured accurately.

Why can thickness vary across one part?

Electroplating follows current distribution. Exposed edges and projections often plate faster than deep recesses or shielded areas, so geometry and tooling strongly influence local thickness.

How Does Master Finish Verify OEM Plating Thickness?

Master Finish supports high-volume OEM decorative plating with multiple in-house measurement methods, including XRF, metallographic examination, Kocour analysis, and step testing. Those resources help connect the customer specification to measurable production controls.

When requesting a quote, provide the complete drawing and current plating specification, including required measurement locations and any layer-specific requirements. That is the best way to avoid ambiguity before tooling and production validation begin.
