What Is Hydrogen Embrittlement Relief and When Is It Required After Plating?

What Is Hydrogen Embrittlement Relief and When Is It Required After Plating?

by | Oct 15, 2026 | General, High Volume Finishing, Metal Finishing Specialists, OEM Parts | 0 comments

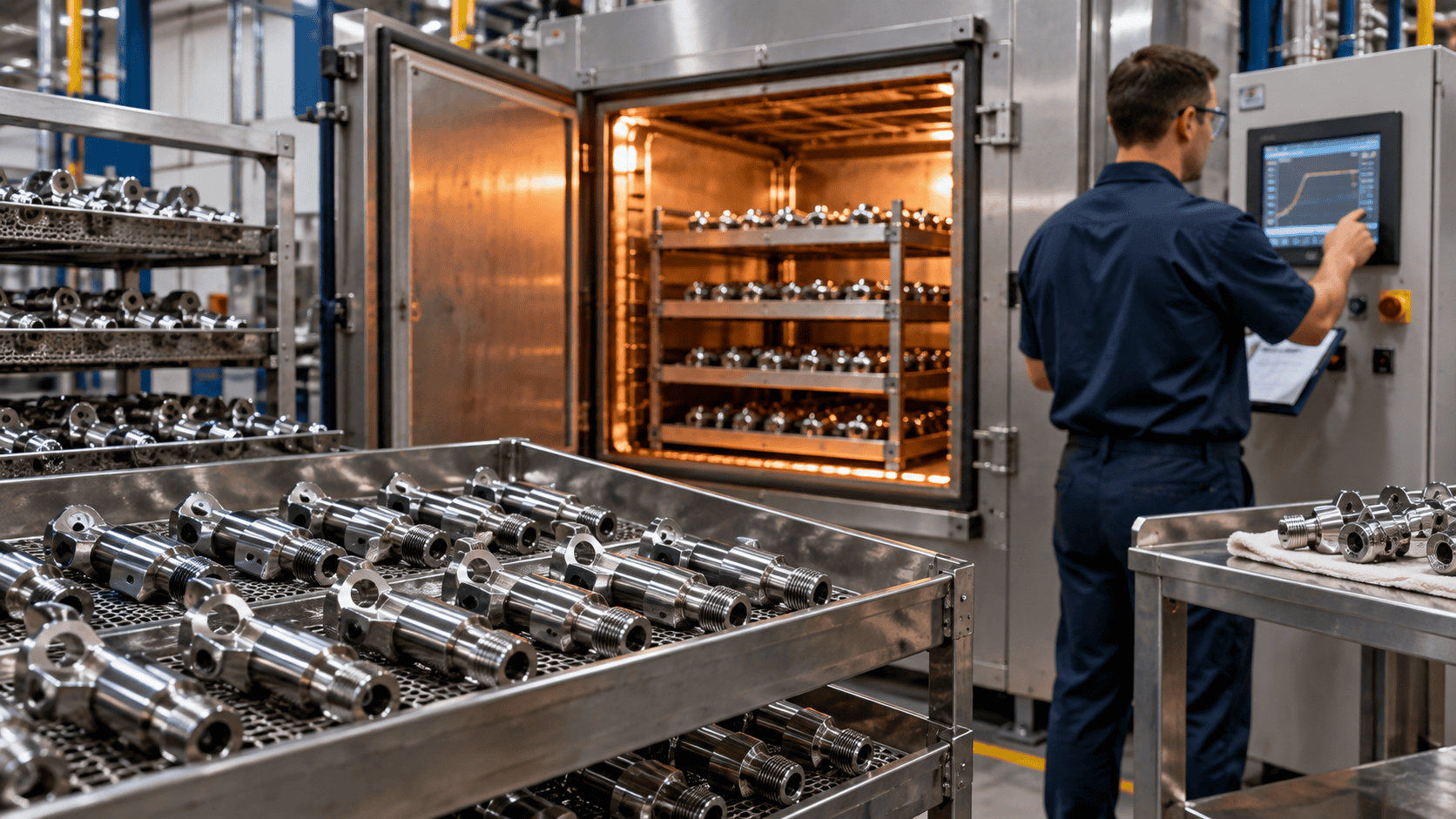

Illustration of post-plating heat treatment for metal components

Quick Answer

Hydrogen embrittlement relief is a controlled post-plating heat treatment used to reduce the risk that absorbed hydrogen will make susceptible steel parts brittle. It is most relevant to high-strength or hardened steels processed through operations that can introduce hydrogen, including acid cleaning, pickling, and electroplating. Whether relief baking is required, and the exact time and temperature, must come from the applicable engineering or customer specification.

What Is Hydrogen Embrittlement?

Hydrogen embrittlement is a loss of ductility and load-carrying capability that can occur when atomic hydrogen enters certain metals, especially higher-strength steels. A part can look normal and still be vulnerable to delayed cracking under stress.

That makes hydrogen embrittlement different from a visible plating defect. The finish may appear acceptable, but the mechanical integrity of the underlying component can be affected if the material, manufacturing history, stress level, and hydrogen exposure create the right conditions.

How Can Electroplating Introduce Hydrogen?

Hydrogen can be generated during several finishing steps. Acid pickling and activation can produce hydrogen at the metal surface, and hydrogen evolution can also occur during electroplating.

Not every plated steel part is equally susceptible. Material strength, hardness, residual stress, part geometry, prior heat treatment, coating process, and service loading all influence risk. That is why hydrogen-embrittlement requirements should be determined by engineering standards rather than applied indiscriminately to every steel component.

What Does Hydrogen Embrittlement Relief Do?

Relief treatment typically uses controlled heating after plating to promote diffusion of hydrogen out of the steel before the part enters service. ASTM B850 provides guidance for post-coating treatments of steel intended to reduce susceptibility to hydrogen embrittlement arising from finishing processes.

ASTM notes that the treatment is performed after plating and before certain secondary conversion-coating operations. It also makes an important point: heat treatment can reduce susceptibility, but it does not guarantee complete freedom from hydrogen-related degradation.

The correct bake cycle depends on the applicable specification and the steel's properties. A plater should not substitute a generic oven recipe for a customer-controlled requirement.

When Is Hydrogen Embrittlement Relief Required?

Relief treatment is commonly considered for high-strength steel, hardened fasteners, spring-like components, highly stressed parts, and other steel components where the governing specification identifies hydrogen-embrittlement risk.

The threshold is not simply whether a part is made of steel. Lower-strength steel components may not require the same treatment, while a hardened or high-tensile part may have strict requirements for how quickly baking begins after plating and how the oven cycle is documented.

The drawing, material specification, hardness, heat-treatment condition, plating specification, and customer-specific requirements should all be reviewed before the process is finalized.

Why Does Timing After Plating Matter?

Hydrogen-relief requirements often control the elapsed time between electroplating and reaching the specified bake temperature. The purpose is to begin the relief process before absorbed hydrogen has more opportunity to migrate to critical locations within the metal.

Master Finish's published AIAG CQI-11 plating assessment documents a controlled hydrogen-embrittlement-relief process on its automated rack plating line, including tracking the time from electroplating through loading and heating, monitoring oven temperature, and verifying oven performance.

An illustrative specification callout might require parts to be baked for 4 hours at 190°C and placed in the oven within 1 hour of exiting the plating line. This example shows the format of a post-plating bake requirement, not a recommended cycle for every part. Loading limits and bake parameters vary and must follow the applicable controlled specification.

What Should OEMs Put on the Drawing or Specification?

Do not leave hydrogen-embrittlement relief as an informal note such as “bake after plating.” The controlled requirement should identify the applicable standard or customer specification, material and hardness conditions, required treatment parameters, timing limits, and any verification or record-retention expectations.

If a part is safety-critical, externally threaded, highly stressed, or made from high-strength steel, the engineering team should also determine whether additional embrittlement testing is required after the relief treatment.

Can Better Process Control Eliminate the Need for Relief Baking?

Good process control can reduce unnecessary hydrogen exposure, but it does not automatically eliminate a specified relief requirement. Platers can control acid immersion, cleaning, current density, dwell times, and handling, yet the customer drawing and approved specification remain the authority.

A supplier should be able to show how it controls the plating process and the post-plate oven process as one connected production system.

Does Hydrogen Embrittlement Relief Affect Decorative Plating?

It can. Decorative nickel or nickel chrome may be applied to steel components that also have mechanical performance requirements. When the substrate is susceptible, the finishing plan has to satisfy both appearance and structural requirements.

That is one reason early communication matters. The plater needs the actual material, hardness, heat-treatment condition, coating specification, appearance zones, and post-plate requirements before quoting and tooling the program.

Frequently Asked Questions About Hydrogen Embrittlement Relief

Does every nickel-plated steel part need to be baked?

No. The requirement depends on material strength, hardness, part function, processing history, and the applicable engineering specification. As a screening rule of thumb, steel above HRC 32 warrants consideration of relief treatment or engineering review with a metallurgist. This is not a universal specification threshold or a substitute for the applicable engineering requirement.

Can hydrogen embrittlement be seen visually?

Not reliably. A susceptible part may look normal and still experience delayed cracking under load, which is why process controls and engineering requirements matter.

Is baking guaranteed to remove all hydrogen-embrittlement risk?

No. ASTM B850 specifically notes that post-coating heat treatment does not guarantee complete freedom from hydrogen degradation. Proper material selection, design, processing, and specification compliance are all part of risk control.

Does Master Finish Offer Hydrogen Embrittlement Relief?

Yes. Master Finish publicly lists post-plating hydrogen embrittlement relief among its coordinated secondary services, and its published CQI-11 assessment includes a documented hydrogen-embrittlement-relief process.

For an accurate process review, provide the part drawing, material grade, hardness or tensile-strength information, heat-treatment condition, plating specification, hydrogen-relief requirement, production volume, and any customer-specific timing or documentation rules.
